v1.2.2

build: compile linux/arm64 in native runner
build: add darwin arm64 & amd64
2025-05-22 14:02:40 +00:00 · 2025-04-22 18:27:55 -04:00 · 2025-04-22 18:27:55 -04:00 · 2025-04-22 18:27:54 -04:00 · 2025-04-22 18:27:54 -04:00 · 2025-04-22 18:27:54 -04:00
25 changed files with 1113 additions and 359 deletions
--- a/.github/workflows/build_releases.yml
+++ b/.github/workflows/build_releases.yml
@ -8,11 +8,11 @@ on:

 env:
  GITHUB_REF: ${{ github.ref }}
-  GO_VERSION: '1.22.1'
+  GO_VERSION: '1.24.2'

 jobs:
  build-common:
-    runs-on: ubuntu-latest
+    runs-on: ubuntu-24.04

    steps:
      - name: Checkout Main Repo
@ -40,8 +40,10 @@ jobs:
          name: CHANGELOG.md
          path: ./CHANGELOG.md

+###
+
  build-linux-arm64:
-    runs-on: ubuntu-latest
+    runs-on: ubuntu-24.04-arm
    steps:
      - name: Checkout Repo
        uses: actions/checkout@v4
@ -50,12 +52,6 @@ jobs:
          ref: ${{ env.GITHUB_REF }}
          fetch-depth: 0

-      - name: Update apt
-        run: sudo apt update
-
-      - name: Install cross-compiler for linux/arm64
-        run: sudo apt-get -y install gcc-aarch64-linux-gnu
-
      - name: Set up Go
        uses: actions/setup-go@v5
        with:
@ -66,7 +62,6 @@ jobs:
        env:
          GOOS: linux
          GOARCH: arm64
-          CC: aarch64-linux-gnu-gcc
          CGO_ENABLED: 0

      - name: Save Compiled Binary
@ -90,7 +85,7 @@ jobs:
          path: ./apc-p15-install

  build-linux-amd64:
-    runs-on: ubuntu-latest
+    runs-on: ubuntu-24.04
    steps:
      - name: Checkout Backend Repo
        uses: actions/checkout@v4
@ -171,9 +166,93 @@ jobs:
          name: apc-p15-install-windows-amd64
          path: ./apc-p15-install.exe

+  build-darwin-arm64:
+    runs-on: macos-15
+    steps:
+      - name: Checkout Backend Repo
+        uses: actions/checkout@v4
+        with:
+          repository: gregtwallace/apc-p15-tool
+          ref: ${{ env.GITHUB_REF }}
+          fetch-depth: 0
+
+      - name: Set up Go
+        uses: actions/setup-go@v5
+        with:
+          go-version: '${{ env.GO_VERSION }}'
+
+      - name: Build Tool
+        run: go build -o ./apc-p15-tool -v ./cmd/tool
+        env:
+          GOOS: darwin
+          GOARCH: arm64
+          CGO_ENABLED: 0
+
+      - name: Save Compiled Binary
+        uses: actions/upload-artifact@v4
+        with:
+          name: apc-p15-tool-darwin-arm64
+          path: ./apc-p15-tool
+
+      - name: Build Install Only
+        run: go build -o ./apc-p15-install -v ./cmd/install_only
+        env:
+          GOOS: darwin
+          GOARCH: arm64
+          CGO_ENABLED: 0
+
+      - name: Save Compiled Binary
+        uses: actions/upload-artifact@v4
+        with:
+          name: apc-p15-install-darwin-arm64
+          path: ./apc-p15-install
+
+  build-darwin-amd64:
+    runs-on: macos-13
+    steps:
+      - name: Checkout Backend Repo
+        uses: actions/checkout@v4
+        with:
+          repository: gregtwallace/apc-p15-tool
+          ref: ${{ env.GITHUB_REF }}
+          fetch-depth: 0
+
+      - name: Set up Go
+        uses: actions/setup-go@v5
+        with:
+          go-version: '${{ env.GO_VERSION }}'
+
+      - name: Build Tool
+        run: go build -o ./apc-p15-tool -v ./cmd/tool
+        env:
+          GOOS: darwin
+          GOARCH: amd64
+          CGO_ENABLED: 0
+
+      - name: Save Compiled Binary
+        uses: actions/upload-artifact@v4
+        with:
+          name: apc-p15-tool-darwin-amd64
+          path: ./apc-p15-tool
+
+      - name: Build Install Only
+        run: go build -o ./apc-p15-install -v ./cmd/install_only
+        env:
+          GOOS: darwin
+          GOARCH: amd64
+          CGO_ENABLED: 0
+
+      - name: Save Compiled Binary
+        uses: actions/upload-artifact@v4
+        with:
+          name: apc-p15-install-darwin-amd64
+          path: ./apc-p15-install
+
+###
+
  release-file-linux-arm64:
    needs: [build-common, build-linux-arm64]
-    runs-on: ubuntu-latest
+    runs-on: ubuntu-24.04

    steps:
      - name: Make release directory
@ -217,7 +296,7 @@ jobs:

  release-file-linux-amd64:
    needs: [build-common, build-linux-amd64]
-    runs-on: ubuntu-latest
+    runs-on: ubuntu-24.04

    steps:
      - name: Make release directory
@ -261,7 +340,7 @@ jobs:

  release-file-windows-amd64:
    needs: [build-common, build-windows-amd64]
-    runs-on: ubuntu-latest
+    runs-on: ubuntu-24.04

    steps:
      - name: Make release directory
@ -302,3 +381,91 @@ jobs:
        with:
          name: apc-p15-tool_windows_amd64
          path: ./release
+
+  release-file-darwin-arm64:
+    needs: [build-common, build-darwin-arm64]
+    runs-on: ubuntu-24.04
+
+    steps:
+      - name: Make release directory
+        run: mkdir ./release
+
+      - name: Download Tool Binary
+        uses: actions/download-artifact@v4
+        with:
+          name: apc-p15-tool-darwin-arm64
+          path: ./release
+
+      - name: Download Install Binary
+        uses: actions/download-artifact@v4
+        with:
+          name: apc-p15-install-darwin-arm64
+          path: ./release
+
+      - name: Download README
+        uses: actions/download-artifact@v4
+        with:
+          name: README.md
+          path: ./release
+
+      - name: Download LICENSE
+        uses: actions/download-artifact@v4
+        with:
+          name: LICENSE.md
+          path: ./release
+
+      - name: Download CHANGELOG
+        uses: actions/download-artifact@v4
+        with:
+          name: CHANGELOG.md
+          path: ./release
+
+      - name: Save Release
+        uses: actions/upload-artifact@v4
+        with:
+          name: apc-p15-tool_darwin_arm64
+          path: ./release
+
+  release-file-darwin-amd64:
+    needs: [build-common, build-darwin-amd64]
+    runs-on: ubuntu-24.04
+
+    steps:
+      - name: Make release directory
+        run: mkdir ./release
+
+      - name: Download Tool Binary
+        uses: actions/download-artifact@v4
+        with:
+          name: apc-p15-tool-darwin-amd64
+          path: ./release
+
+      - name: Download Install Binary
+        uses: actions/download-artifact@v4
+        with:
+          name: apc-p15-install-darwin-amd64
+          path: ./release
+
+      - name: Download README
+        uses: actions/download-artifact@v4
+        with:
+          name: README.md
+          path: ./release
+
+      - name: Download LICENSE
+        uses: actions/download-artifact@v4
+        with:
+          name: LICENSE.md
+          path: ./release
+
+      - name: Download CHANGELOG
+        uses: actions/download-artifact@v4
+        with:
+          name: CHANGELOG.md
+          path: ./release
+
+      - name: Save Release
+        uses: actions/upload-artifact@v4
+        with:
+          name: apc-p15-tool_darwin_amd64
+          path: ./release
--- a/CHANGELOG.md
+++ b/CHANGELOG.md
@ -1,5 +1,66 @@
 # APC P15 Tool Changelog

+## [v1.2.2] - 2025-04-22
+
+All dependencies updated.
+
+Add darwin arm64 and amd64 builds.
+
+
+## [v1.2.1] - 2025-03-17
+
+Fix time check for UPS when it is set to GMT timezone.
+
+All dependencies updated.
+
+
+## [v1.2.0] - 2025-01-27
+
+Add a new feature to `install` that checks the time of the UPS to confirm
+it is accurate. A log message is added that advises either way. Even if
+the check fails, the install still proceeds with attempting to install
+the new certificate.
+
+Dependencies were also all updated.
+
+
+## [v1.1.0] - 2024-09-17
+
+> [!IMPORTANT]
+> The flag `apchost` on the `install` command has been renamed to
+> `hostname`. This flag should contain the hostname only. If a non-
+> default SSH port is needed, specify it in the `sshport` flag.
+
+This version brings support for for RSA 4,092 bit and EC keys. These
+keys are only compatible with NMC3 running newer firmwares. To know
+if your firmware is new enough, SSH into your UPS and type `ssh` and enter.
+If the UPS responds `Command Not Found` the firmware is too old or
+otherwise incompatible.
+
+This version also adds a post `install` check that connects to the web
+ui and verifies the certificate served is the expected one. You can
+specify a non standard ssl port with the `sslport` flag or skip the check
+entirely with the `skipverify` flag.
+
+
+## [v1.0.0] - 2024-07-01
+
+First official stable release.
+
+Fixes Go version in Github action.
+
+
+## [v0.5.3] - 2024-06-24
+
+Add 3,072 bit RSA key support.
+
+
+## [v0.5.2] - 2024-06-19
+
+Minor tweak to the previous version. Add timeout for shell
+commands that don't execute as expected.
+
+
 ## [v0.5.1] - 2024-06-18

 Both NMC2 and NMC3 should now be fully supported.
--- a/README.md
+++ b/README.md
@ -58,22 +58,42 @@ and licensed under the GPL-3.0 license.
 Both NMC2 and NMC3 devices should be fully supported. However, I have one
 NMC2 device in a home lab and have no way to guarantee success in all cases.

-Only RSA 1,024 and 2,048 bit keys are accepted. 1,024 bit RSA is no longer
-considered completely secure; avoid keys of this size if possible. Most
-(all?) public ACME services won't accept keys of this size anyway.
+### Key Types and Sizes

-Even though later versions of the NMC3 firmware supports RSA 4,096 and
-ECDSA keys, this tool does not. These options were not available in APC's
-proprietary tool, and as such I have no way to generate files to reverse
-engineer.
+NMC2:
+- RSA 1,024, 2,048, 3,072* bit lengths.
+
+NMC3*:
+- RSA 1,024, 2,048, 3,072, and 4,092 bit lengths.
+- ECDSA curves P-256, P-384, and P-521.
+
+\* 3,072 bit length is not officially supported by my NMC2, but appears to work
+  fine.
+
+\* The additional key types supported by NMC3 require newer firmware on the
+  device. I am unsure what the version cutoff is, but you can check support
+  by connecting to the UPS via SSH and typing `ssl`. If `Command Not Found`
+  is returned, the firmware is too old and only the key types listed under
+  NMC2 will work.
+
+1,024 bit RSA is no longer considered completely secure; avoid keys of
+this size if possible. Most (all?) public ACME services won't accept keys
+of this size anyway.
+
+### General Troubleshooting

 My setup (and therefore the testing setup) is:
 - APC Smart-UPS 1500VA RM 2U SUA1500RM2U (Firmware Revision 667.18.D)
- AP9631 NMC2 Hardware Revision 05 running AOS v7.0.4 and Boot Monitor
+- AP9631 NMC2 Hardware Revision 05 running AOS v7.1.2 and Boot Monitor
  v1.0.9.

-If you have problems, please post the log in an issue and I can try to fix it
-but it may be difficult without your particular hardware to test with.
+If you have trouble, your first step should be to update your NMC's firmware.
+Many issues with this tool will be resolved simply by updating to the newest
+firmware.
+
+If you have a problem after that, please post the log in an issue and I can
+try to fix it but it may be difficult without your particular hardware to
+test with.

 In particular, if you are experiencing `ssh: handshake failed:` first try
 using the `--insecurecipher` flag. If this works, you should upgrade your
@ -126,7 +146,7 @@ disk. It instead installs the files directly on the NMC. Logic
 automatically deduces if the device is an NMC2 or NMC3 and performs
 the appropriate installation steps.

-e.g. `./apc-p15-tool install --keyfile ./apckey.pem --certfile ./apccert.pem --apchost myapc.example.com:22 --username apc --password someSecret --fingerprint 123abc`
+e.g. `./apc-p15-tool install --keyfile ./apckey.pem --certfile ./apccert.pem --hostname myapc.example.com --username apc --password someSecret --fingerprint 123abc`

 ## Note About Install Automation

--- a/build.ps1
+++ b/build.ps1
@ -34,3 +34,25 @@ $env:GOARCH = "arm64"
 $env:GOOS = "linux"
 $env:CGO_ENABLED = 0
 go build -o $outDir/apc-p15-install-arm64 ./cmd/install_only
+
+# Darwin (MacOS) amd64
+$env:GOARCH = "amd64"
+$env:GOOS = "darwin"
+$env:CGO_ENABLED = 0
+go build -o $outDir/apc-p15-tool-darwin-amd64 ./cmd/tool
+
+$env:GOARCH = "amd64"
+$env:GOOS = "darwin"
+$env:CGO_ENABLED = 0
+go build -o $outDir/apc-p15-install-darwin-amd64 ./cmd/install_only
+
+# Darwin (MacOS) arm64
+$env:GOARCH = "arm64"
+$env:GOOS = "darwin"
+$env:CGO_ENABLED = 0
+go build -o $outDir/apc-p15-tool-darwin-arm64 ./cmd/tool
+
+$env:GOARCH = "arm64"
+$env:GOOS = "darwin"
+$env:CGO_ENABLED = 0
+go build -o $outDir/apc-p15-install-darwin-arm64 ./cmd/install_only
--- a/go.mod
+++ b/go.mod
@ -1,14 +1,14 @@
 module apc-p15-tool

-go 1.22.4
+go 1.24.2

 require (
 	github.com/peterbourgon/ff/v4 v4.0.0-alpha.4
-	github.com/sigurn/crc16 v0.0.0-20211026045750-20ab5afb07e3
-	golang.org/x/crypto v0.18.0
+	github.com/sigurn/crc16 v0.0.0-20240131213347-83fcde1e29d1
+	golang.org/x/crypto v0.37.0
 )

-require golang.org/x/sys v0.16.0 // indirect
+require golang.org/x/sys v0.32.0 // indirect

 replace apc-p15-tool/cmd/install_only => /cmd/install_only

--- a/go.sum
+++ b/go.sum
@ -2,13 +2,13 @@ github.com/pelletier/go-toml/v2 v2.0.9 h1:uH2qQXheeefCCkuBBSLi7jCiSmj3VRh2+Goq2N
 github.com/pelletier/go-toml/v2 v2.0.9/go.mod h1:tJU2Z3ZkXwnxa4DPO899bsyIoywizdUvyaeZurnPPDc=
 github.com/peterbourgon/ff/v4 v4.0.0-alpha.4 h1:aiqS8aBlF9PsAKeMddMSfbwp3smONCn3UO8QfUg0Z7Y=
 github.com/peterbourgon/ff/v4 v4.0.0-alpha.4/go.mod h1:H/13DK46DKXy7EaIxPhk2Y0EC8aubKm35nBjBe8AAGc=
-github.com/sigurn/crc16 v0.0.0-20211026045750-20ab5afb07e3 h1:aQKxg3+2p+IFXXg97McgDGT5zcMrQoi0EICZs8Pgchs=
-github.com/sigurn/crc16 v0.0.0-20211026045750-20ab5afb07e3/go.mod h1:9/etS5gpQq9BJsJMWg1wpLbfuSnkm8dPF6FdW2JXVhA=
-golang.org/x/crypto v0.18.0 h1:PGVlW0xEltQnzFZ55hkuX5+KLyrMYhHld1YHO4AKcdc=
-golang.org/x/crypto v0.18.0/go.mod h1:R0j02AL6hcrfOiy9T4ZYp/rcWeMxM3L6QYxlOuEG1mg=
-golang.org/x/sys v0.16.0 h1:xWw16ngr6ZMtmxDyKyIgsE93KNKz5HKmMa3b8ALHidU=
-golang.org/x/sys v0.16.0/go.mod h1:/VUhepiaJMQUp4+oa/7Zr1D23ma6VTLIYjOOTFZPUcA=
-golang.org/x/term v0.16.0 h1:m+B6fahuftsE9qjo0VWp2FW0mB3MTJvR0BaMQrq0pmE=
-golang.org/x/term v0.16.0/go.mod h1:yn7UURbUtPyrVJPGPq404EukNFxcm/foM+bV/bfcDsY=
+github.com/sigurn/crc16 v0.0.0-20240131213347-83fcde1e29d1 h1:NVK+OqnavpyFmUiKfUMHrpvbCi2VFoWTrcpI7aDaJ2I=
+github.com/sigurn/crc16 v0.0.0-20240131213347-83fcde1e29d1/go.mod h1:9/etS5gpQq9BJsJMWg1wpLbfuSnkm8dPF6FdW2JXVhA=
+golang.org/x/crypto v0.37.0 h1:kJNSjF/Xp7kU0iB2Z+9viTPMW4EqqsrywMXLJOOsXSE=
+golang.org/x/crypto v0.37.0/go.mod h1:vg+k43peMZ0pUMhYmVAWysMK35e6ioLh3wB8ZCAfbVc=
+golang.org/x/sys v0.32.0 h1:s77OFDvIQeibCmezSnk/q6iAfkdiQaJi4VzroCFrN20=
+golang.org/x/sys v0.32.0/go.mod h1:BJP2sWEmIv4KK5OTEluFJCKSidICx8ciO85XgH3Ak8k=
+golang.org/x/term v0.31.0 h1:erwDkOK1Msy6offm1mOgvspSkslFnIGsFnxOKoufg3o=
+golang.org/x/term v0.31.0/go.mod h1:R4BeIy7D95HzImkxGkTW1UQTtP54tio2RyHz7PwK0aw=
 gopkg.in/yaml.v2 v2.4.0 h1:D8xgwECY7CYvx+Y2n4sBz93Jn9JRvxdiyyo8CTfuKaY=
 gopkg.in/yaml.v2 v2.4.0/go.mod h1:RDklbk79AGWmwhnvt/jBztapEOGDOx6ZbXqjP6csGnQ=

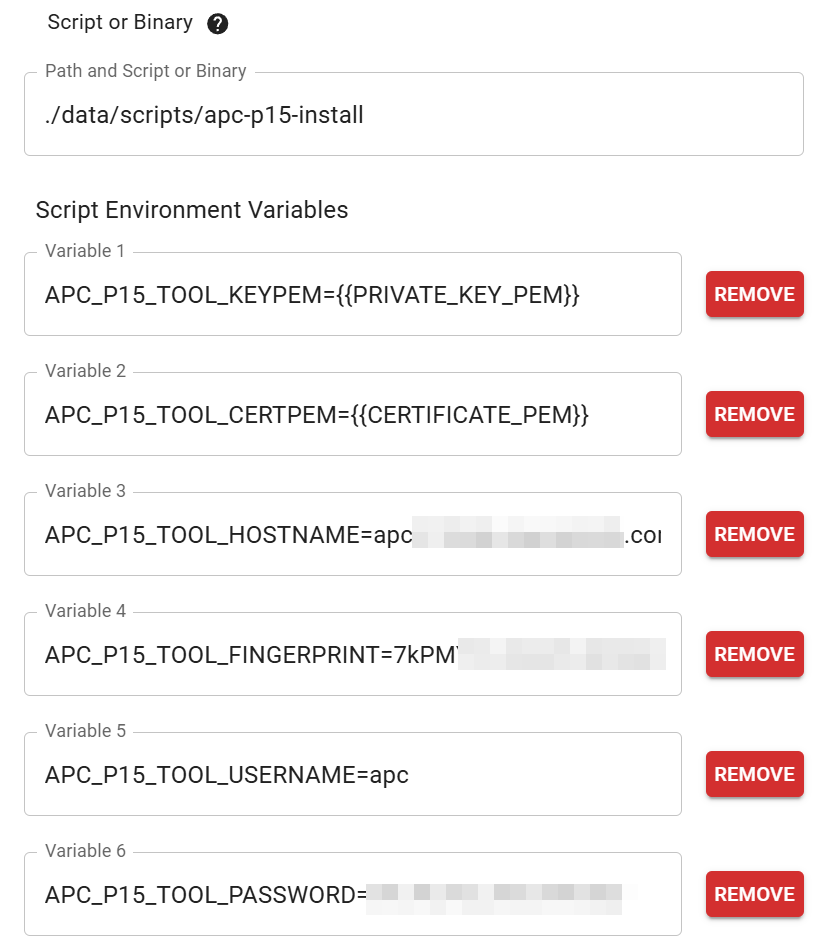

--- a/img/apc-p15-tool.png
+++ b/img/apc-p15-tool.png
--- a/pkg/apcssh/cmd_gettime.go
+++ b/pkg/apcssh/cmd_gettime.go
@ -0,0 +1,62 @@
+package apcssh
+
+import (
+	"fmt"
+	"regexp"
+	"strings"
+	"time"
+)
+
+// GetTime sends the APC `system` command and then attempts to parse the
+// response to determine the UPS current date/time.
+func (cli *Client) GetTime() (time.Time, error) {
+	result, err := cli.cmd("date")
+	if err != nil {
+		return time.Time{}, fmt.Errorf("apcssh: failed to get time (%s)", err)
+	} else if !strings.EqualFold(result.code, "e000") {
+		return time.Time{}, fmt.Errorf("apcssh: failed to get time (%s: %s)", result.code, result.codeText)
+	}
+
+	// capture each portion of the date information
+	regex := regexp.MustCompile(`Date:\s*(\S*)\s*[\r\n]Time:\s*(\S*)\s*[\r\n]Format:\s*(\S*)\s*[\r\n]Time Zone:\s*(\S*)\s*[\r\n]?`)
+	datePieces := regex.FindStringSubmatch(result.resultText)
+	if len(datePieces) != 5 {
+		return time.Time{}, fmt.Errorf("apcssh: failed to get time (length of datetime value pieces was %d (expected: 5))", len(datePieces))
+	}
+	dateVal := datePieces[1]
+	timeVal := datePieces[2]
+	formatUPSVal := datePieces[3]
+	timeZoneVal := datePieces[4]
+
+	// GMT time requires + prefix
+	// APC UPS fails to use the required +, so add it
+	if timeZoneVal == "00:00" {
+		timeZoneVal = "+" + timeZoneVal
+	}
+
+	// known APC UPS format strings
+	dateFormatVal := ""
+	switch formatUPSVal {
+	case "mm/dd/yyyy":
+		dateFormatVal = "01/02/2006"
+	case "dd.mm.yyyy":
+		dateFormatVal = "02.01.2006"
+	case "mmm-dd-yy":
+		dateFormatVal = "Jan-02-06"
+	case "dd-mmm-yy":
+		dateFormatVal = "02-Jan-06"
+	case "yyyy-mm-dd":
+		dateFormatVal = "2006-01-02"
+
+	default:
+		return time.Time{}, fmt.Errorf("apcssh: failed to get time (ups returned unknown format string (%s)", formatUPSVal)
+	}
+
+	// convert to time.Time
+	t, err := time.Parse(dateFormatVal+" 15:04:05 -07:00", dateVal+" "+timeVal+" "+timeZoneVal)
+	if err != nil {
+		return time.Time{}, fmt.Errorf("apcssh: failed to get time (time parse failed: %s)", err)
+	}
+
+	return t, nil
+}
--- a/pkg/apcssh/cmd_restartwebui.go
+++ b/pkg/apcssh/cmd_restartwebui.go
@ -13,10 +13,8 @@ import (
 func (cli *Client) RestartWebUI() error {
 	result, err := cli.cmd("reboot -Y")
 	if err != nil {
-		return err
-	}
-
-	if !strings.EqualFold(result.code, "e000") {
+		return fmt.Errorf("apcssh: failed to restart web ui (%w)", err)
+	} else if !strings.EqualFold(result.code, "e000") {
 		return fmt.Errorf("apcssh: failed to restart web ui (%s: %s)", result.code, result.codeText)
 	}

--- a/pkg/apcssh/scp.go
+++ b/pkg/apcssh/scp.go
@ -19,7 +19,7 @@ func (cli *Client) UploadSCP(destination string, fileContent []byte, filePermiss
 	// connect
 	sshClient, err := ssh.Dial("tcp", cli.hostname, cli.sshCfg)
 	if err != nil {
-		return fmt.Errorf("apcssh: scp: failed to dial session (%w)", err)
+		return fmt.Errorf("apcssh: scp: failed to dial client (%w)", err)
 	}
 	defer sshClient.Close()

--- a/pkg/apcssh/shell.go
+++ b/pkg/apcssh/shell.go
@ -2,14 +2,25 @@ package apcssh

 import (
 	"bufio"
+	"errors"
 	"fmt"
 	"strings"
+	"time"

 	"golang.org/x/crypto/ssh"
 )

-// upsCmdResponse is a structure that holds all of a shell commands results
-type upsCmdResponse struct {
+// Abort shell connection if UPS doesn't send a recognizable response within
+// the specified timeouts; Cmd timeout is very long as it is unlikely to be
+// needed but still exists to avoid an indefinite hang in the unlikely event
+// something does go wrong at that part of the app
+const (
+	shellTimeoutLogin = 20 * time.Second
+	shellTimeoutCmd   = 5 * time.Minute
+)
+
+// upsCmdResult is a structure that holds all of a shell commands results
+type upsCmdResult struct {
 	command    string
 	code       string
 	codeText   string
@ -17,75 +28,112 @@ type upsCmdResponse struct {
 }

 // cmd creates an interactive shell and executes the specified command
-func (cli *Client) cmd(command string) (*upsCmdResponse, error) {
+func (cli *Client) cmd(command string) (*upsCmdResult, error) {
 	// connect
 	sshClient, err := ssh.Dial("tcp", cli.hostname, cli.sshCfg)
 	if err != nil {
-		return nil, fmt.Errorf("apcssh: failed to dial session (%w)", err)
+		return nil, fmt.Errorf("failed to dial client (%w)", err)
 	}
 	defer sshClient.Close()

 	session, err := sshClient.NewSession()
 	if err != nil {
-		return nil, fmt.Errorf("apcssh: failed to create session (%w)", err)
+		return nil, fmt.Errorf("failed to create session (%w)", err)
 	}
 	defer session.Close()

 	// pipes to send shell command to; and to receive repsonse
 	sshInput, err := session.StdinPipe()
 	if err != nil {
-		return nil, fmt.Errorf("apcssh: failed to make shell input pipe (%w)", err)
+		return nil, fmt.Errorf("failed to make shell input pipe (%w)", err)
 	}
 	sshOutput, err := session.StdoutPipe()
 	if err != nil {
-		return nil, fmt.Errorf("apcssh: failed to make shell output pipe (%w)", err)
+		return nil, fmt.Errorf("failed to make shell output pipe (%w)", err)
 	}

-	// make scanner to read shell continuously
+	// make scanner to read shell output continuously
 	scanner := bufio.NewScanner(sshOutput)
 	scanner.Split(scanAPCShell)

 	// start interactive shell
 	if err := session.Shell(); err != nil {
-		return nil, fmt.Errorf("apcssh: failed to start shell (%w)", err)
+		return nil, fmt.Errorf("failed to start shell (%w)", err)
 	}
-	// discard the initial shell response (login message(s) / initial shell prompt)
-	for {
-		if token := scanner.Scan(); token {
-			_ = scanner.Bytes()
-			break
+
+	// use a timer to close the session early in case Scan() hangs (which can
+	// happen if the UPS provides output this app does not understand)
+	cancelAbort := make(chan struct{})
+	defer close(cancelAbort)
+	go func() {
+		select {
+		case <-time.After(shellTimeoutLogin):
+			_ = session.Close()
+
+		case <-cancelAbort:
+			// aborted cancel (i.e., succesful Scan())
 		}
+	}()
+
+	// check shell response after connect
+	scannedOk := scanner.Scan()
+	// if failed to scan (e.g., timer closed the session after timeout)
+	if !scannedOk {
+		return nil, errors.New("shell did not return parsable login response")
 	}
+	// success; cancel abort timer
+	cancelAbort <- struct{}{}
+	// discard the initial shell response (login message(s) / initial shell prompt)
+	_ = scanner.Bytes()

 	// send command
 	_, err = fmt.Fprint(sshInput, command+"\n")
 	if err != nil {
-		return nil, fmt.Errorf("apcssh: failed to send shell command (%w)", err)
+		return nil, fmt.Errorf("failed to send shell command (%w)", err)
 	}

-	res := &upsCmdResponse{}
-	for {
-		if tkn := scanner.Scan(); tkn {
-			result := string(scanner.Bytes())
+	// use a timer to close the session early in case Scan() hangs (which can
+	// happen if the UPS provides output this app does not understand);
+	// since initial login message Scan() was okay, it is relatively unlikely this
+	// will hang
+	go func() {
+		select {
+		case <-time.After(shellTimeoutCmd):
+			_ = session.Close()

-			cmdIndx := strings.Index(result, "\n")
-			res.command = result[:cmdIndx-1]
-			result = result[cmdIndx+1:]
-
-			codeIndx := strings.Index(result, ": ")
-			res.code = result[:codeIndx]
-			result = result[codeIndx+2:]
-
-			codeTxtIndx := strings.Index(result, "\n")
-			res.codeText = result[:codeTxtIndx-1]
-
-			// avoid out of bounds if no result text
-			if codeTxtIndx+1 <= len(result)-2 {
-				res.resultText = result[codeTxtIndx+1 : len(result)-2]
-			}
-			break
+		case <-cancelAbort:
+			// aborted cancel (i.e., succesful Scan())
 		}
+	}()
+
+	// check shell response to command
+	scannedOk = scanner.Scan()
+	// if failed to scan (e.g., timer closed the session after timeout)
+	if !scannedOk {
+		return nil, fmt.Errorf("shell did not return parsable response to cmd '%s'", command)
+	}
+	// success; cancel abort timer
+	cancelAbort <- struct{}{}
+
+	// parse the UPS response into result struct and return
+	upsRawResponse := string(scanner.Bytes())
+	result := &upsCmdResult{}
+
+	cmdIndx := strings.Index(upsRawResponse, "\n")
+	result.command = upsRawResponse[:cmdIndx-1]
+	upsRawResponse = upsRawResponse[cmdIndx+1:]
+
+	codeIndx := strings.Index(upsRawResponse, ": ")
+	result.code = upsRawResponse[:codeIndx]
+	upsRawResponse = upsRawResponse[codeIndx+2:]
+
+	codeTxtIndx := strings.Index(upsRawResponse, "\n")
+	result.codeText = upsRawResponse[:codeTxtIndx-1]
+
+	// avoid out of bounds if no result text
+	if codeTxtIndx+1 <= len(upsRawResponse)-2 {
+		result.resultText = upsRawResponse[codeTxtIndx+1 : len(upsRawResponse)-2]
 	}

-	return res, nil
+	return result, nil
 }
--- a/pkg/apcssh/shell_helpers.go
+++ b/pkg/apcssh/shell_helpers.go
@ -1,31 +1,31 @@
 package apcssh

 import (
+	"io"
 	"regexp"
 )

 // scanAPCShell is a SplitFunc to capture shell output after each interactive
 // shell command is run
 func scanAPCShell(data []byte, atEOF bool) (advance int, token []byte, err error) {
-	if atEOF && len(data) == 0 {
+	// EOF is not an expected response and should error (e.g., when the output pipe
+	// gets closed by timeout)
+	if atEOF {
+		return len(data), dropCR(data), io.ErrUnexpectedEOF
+	} else if len(data) == 0 {
+		// no data to process, request more data
 		return 0, nil, nil
 	}

 	// regex for shell prompt (e.g., `apc@apc>`, `apc>`, `some@dev>`, `other123>`, etc.)
 	re := regexp.MustCompile(`(\r\n|\r|\n)([A-Za-z0-9.]+@?)?[A-Za-z0-9.]+>`)
-
 	// find match for prompt
 	if index := re.FindStringIndex(string(data)); index != nil {
 		// advance starts after the prompt; token is everything before the prompt
 		return index[1], dropCR(data[0:index[0]]), nil
 	}

-	// If we're at EOF, we have a final, non-terminated line. Return it.
-	if atEOF {
-		return len(data), dropCR(data), nil
-	}
-
-	// Request more data.
+	// no match, request more data
 	return 0, nil, nil
 }

--- a/pkg/apcssh/ssl.go
+++ b/pkg/apcssh/ssl.go
@ -1,10 +1,13 @@
 package apcssh

 import (
+	"errors"
 	"fmt"
 	"strings"
 )

+var errSSLMissingData = errors.New("apcssh: ssl cert install: cant install nil data (unsupported key/nmc version/nmc firmware combo?)")
+
 // InstallSSLCert installs the specified p15 key and p15 cert files on the
 // UPS. It has logic to deduce if the NMC is a newer version (e.g., NMC3 with
 // newer firmware) and acts accordingly.
@ -12,7 +15,7 @@ func (cli *Client) InstallSSLCert(keyP15 []byte, certPem []byte, keyCertP15 []by
 	// run `ssl` command to check if it exists
 	result, err := cli.cmd("ssl")
 	if err != nil {
-		return fmt.Errorf("apcssh: ssl cert install: failed to send ssl cmd (%w)", err)
+		return fmt.Errorf("apcssh: ssl cert install: failed to test ssl cmd (%w)", err)
 	}
 	// E101 is the code for "Command Not Found"
 	supportsSSLCmd := !strings.EqualFold(result.code, "e101")
@ -29,6 +32,11 @@ func (cli *Client) InstallSSLCert(keyP15 []byte, certPem []byte, keyCertP15 []by
 // installSSLCertModern installs the SSL key and certificate using the UPS built-in
 // command `ssl`. This command is not present on older devices (e.g., NMC2) or firmwares.
 func (cli *Client) installSSLCertModern(keyP15 []byte, certPem []byte) error {
+	// fail if required data isn't present
+	if keyP15 == nil || len(keyP15) <= 0 || certPem == nil || len(certPem) <= 0 {
+		return errSSLMissingData
+	}
+
 	// upload the key P15 file
 	err := cli.UploadSCP("/ssl/nmc.key", keyP15, 0600)
 	if err != nil {
@ -45,16 +53,14 @@ func (cli *Client) installSSLCertModern(keyP15 []byte, certPem []byte) error {
 	result, err := cli.cmd("ssl key -i /ssl/nmc.key")
 	if err != nil {
 		return fmt.Errorf("apcssh: ssl cert install: failed to send ssl key install cmd (%w)", err)
-	}
-	if !strings.EqualFold(result.code, "e000") {
+	} else if !strings.EqualFold(result.code, "e000") {
 		return fmt.Errorf("apcssh: ssl cert install: ssl key install cmd returned error code (%s: %s)", result.code, result.codeText)
 	}

 	result, err = cli.cmd("ssl cert -i /ssl/nmc.crt")
 	if err != nil {
 		return fmt.Errorf("apcssh: ssl cert install: failed to send ssl cert install cmd (%w)", err)
-	}
-	if !strings.EqualFold(result.code, "e000") {
+	} else if !strings.EqualFold(result.code, "e000") {
 		return fmt.Errorf("apcssh: ssl cert install: ssl cert install cmd returned error code (%s: %s)", result.code, result.codeText)
 	}

@ -65,6 +71,11 @@ func (cli *Client) installSSLCertModern(keyP15 []byte, certPem []byte) error {
 // them to a .p15 file on the UPS. This is used for older devices (e.g., NMC2) and
 // firmwares that do not support the `ssl` command.
 func (cli *Client) installSSLCertLegacy(keyCertP15 []byte) error {
+	// fail if required data isn't present
+	if keyCertP15 == nil || len(keyCertP15) <= 0 {
+		return errSSLMissingData
+	}
+
 	// upload/install keyCert P15 file
 	err := cli.UploadSCP("/ssl/defaultcert.p15", keyCertP15, 0600)
 	if err != nil {
--- a/pkg/app/app.go
+++ b/pkg/app/app.go
@ -12,7 +12,7 @@ import (
 )

 const (
-	appVersion = "0.5.1"
+	appVersion = "1.2.2"
 )

 // struct for receivers to use common app pieces
--- a/pkg/app/cmd_create.go
+++ b/pkg/app/cmd_create.go
@ -51,11 +51,14 @@ func (app *app) cmdCreate(_ context.Context, args []string) error {
 	}
 	app.stdLogger.Printf("create: apc p15 key file %s written to disk", keyFileName)

-	err = os.WriteFile(keyCertFileName, apcKeyCertFile, 0600)
-	if err != nil {
-		return fmt.Errorf("create: failed to write apc p15 key+cert file (%s)", err)
+	// skip key+cert if it wasn't generated
+	if len(apcKeyCertFile) > 0 {
+		err = os.WriteFile(keyCertFileName, apcKeyCertFile, 0600)
+		if err != nil {
+			return fmt.Errorf("create: failed to write apc p15 key+cert file (%s)", err)
+		}
+		app.stdLogger.Printf("create: apc p15 key+cert file %s written to disk", keyCertFileName)
 	}
-	app.stdLogger.Printf("create: apc p15 key+cert file %s written to disk", keyCertFileName)

 	// if debug, write additional debug files (b64 format to make copy/paste into asn1 decoder
 	// easy to do e.g., https://lapo.it/asn1js)
@ -67,19 +70,22 @@ func (app *app) cmdCreate(_ context.Context, args []string) error {
 		}
 		app.debugLogger.Printf("create: apc p15 key file %s written to disk", keyFileNameDebug)

-		keyCertFileNameDebug := keyCertFileName + ".noheader.b64"
-		err = os.WriteFile(keyCertFileNameDebug, []byte(base64.StdEncoding.EncodeToString(apcKeyCertFile[apcHeaderLen:])), 0600)
-		if err != nil {
-			return fmt.Errorf("create: failed to write apc p15 key+cert file (%s)", err)
-		}
-		app.debugLogger.Printf("create: apc p15 key+cert file %s written to disk", keyCertFileNameDebug)
+		// skip key+cert if it wasn't generated
+		if len(apcKeyCertFile) > 0 {
+			keyCertFileNameDebug := keyCertFileName + ".noheader.b64"
+			err = os.WriteFile(keyCertFileNameDebug, []byte(base64.StdEncoding.EncodeToString(apcKeyCertFile[apcHeaderLen:])), 0600)
+			if err != nil {
+				return fmt.Errorf("create: failed to write apc p15 key+cert file (%s)", err)
+			}
+			app.debugLogger.Printf("create: apc p15 key+cert file %s written to disk", keyCertFileNameDebug)

-		keyCertFileNameHeaderDebug := keyCertFileName + ".header.b64"
-		err = os.WriteFile(keyCertFileNameHeaderDebug, []byte(base64.StdEncoding.EncodeToString(apcKeyCertFile[:apcHeaderLen])), 0600)
-		if err != nil {
-			return fmt.Errorf("create: failed to write apc p15 key+cert file (%s)", err)
+			keyCertFileNameHeaderDebug := keyCertFileName + ".header.b64"
+			err = os.WriteFile(keyCertFileNameHeaderDebug, []byte(base64.StdEncoding.EncodeToString(apcKeyCertFile[:apcHeaderLen])), 0600)
+			if err != nil {
+				return fmt.Errorf("create: failed to write apc p15 key+cert file (%s)", err)
+			}
+			app.debugLogger.Printf("create: apc p15 key+cert file header %s written to disk", keyCertFileNameHeaderDebug)
 		}
-		app.debugLogger.Printf("create: apc p15 key+cert file header %s written to disk", keyCertFileNameHeaderDebug)

 	}

--- a/pkg/app/cmd_install.go
+++ b/pkg/app/cmd_install.go
@ -2,11 +2,18 @@ package app

 import (
 	"apc-p15-tool/pkg/apcssh"
+	"bytes"
 	"context"
+	"crypto/tls"
+	"encoding/pem"
 	"errors"
 	"fmt"
+	"strconv"
+	"time"
 )

+const timeLoggingFormat = time.RFC1123Z
+
 // cmdInstall is the app's command to create apc p15 file content from key and cert
 // pem files and upload the p15 to the specified APC UPS
 func (app *app) cmdInstall(cmdCtx context.Context, args []string) error {
@ -36,7 +43,9 @@ func (app *app) cmdInstall(cmdCtx context.Context, args []string) error {
 	}

 	// host to install on must be specified
-	if app.config.install.hostAndPort == nil || *app.config.install.hostAndPort == "" {
+	if app.config.install.hostname == nil || *app.config.install.hostname == "" ||
+		app.config.install.sshport == nil || *app.config.install.sshport == 0 {
+
 		return errors.New("install: failed, apc host not specified")
 	}

@ -55,7 +64,7 @@ func (app *app) cmdInstall(cmdCtx context.Context, args []string) error {

 	// make APC SSH client
 	cfg := &apcssh.Config{
-		Hostname:          *app.config.install.hostAndPort,
+		Hostname:          *app.config.install.hostname + ":" + strconv.Itoa(*app.config.install.sshport),
 		Username:          *app.config.install.username,
 		Password:          *app.config.install.password,
 		ServerFingerprint: *app.config.install.fingerprint,
@ -68,14 +77,24 @@ func (app *app) cmdInstall(cmdCtx context.Context, args []string) error {
 	}
 	app.stdLogger.Println("install: connected to ups ssh, installing ssl key and cert...")

+	// check time - don't fail it time is no good, just do logging here
+	upsT, err := client.GetTime()
+	if err != nil {
+		app.errLogger.Printf("warn: install: failed to fetch UPS time (%s), you should manually verify the time is correct on the UPS", err)
+	} else if upsT.After(time.Now().Add(1*time.Hour)) || upsT.Before(time.Now().Add(-1*time.Hour)) {
+		app.errLogger.Printf("warn: install: UPS clock skew detected (this system's time is %s vs. UPS time %s", time.Now().Format(timeLoggingFormat), upsT.Format(timeLoggingFormat))
+	} else {
+		app.stdLogger.Printf("install: UPS clock appears correct (%s)", upsT.Format(timeLoggingFormat))
+	}
+
 	// install SSL Cert
 	err = client.InstallSSLCert(keyP15, certPem, keyCertP15)
 	if err != nil {
-		return fmt.Errorf("install: failed to send file to ups over scp (%w)", err)
+		return fmt.Errorf("install: %w", err)
 	}

 	// installed
-	app.stdLogger.Printf("install: apc p15 file installed on %s", *app.config.install.hostAndPort)
+	app.stdLogger.Printf("install: apc p15 file installed on %s", *app.config.install.hostname)

 	// restart UPS webUI
 	if app.config.install.restartWebUI != nil && *app.config.install.restartWebUI {
@ -89,5 +108,48 @@ func (app *app) cmdInstall(cmdCtx context.Context, args []string) error {
 		app.stdLogger.Println("install: sent webui restart command")
 	}

+	// check the new certificate is installed
+	if app.config.install.skipVerify != nil && !*app.config.install.skipVerify &&
+		app.config.install.webUISSLPort != nil && *app.config.install.webUISSLPort != 0 {
+
+		app.stdLogger.Println("install: attempting to verify certificate install...")
+
+		// sleep for UPS to finish anything it might be doing
+		time.Sleep(5 * time.Second)
+
+		// if UPS web UI was restarted, sleep longer
+		if app.config.install.restartWebUI != nil && *app.config.install.restartWebUI {
+			app.stdLogger.Println("install: waiting for ups webui restart...")
+			time.Sleep(25 * time.Second)
+		}
+
+		// connect to the web UI to get the current certificate
+		conf := &tls.Config{
+			InsecureSkipVerify: true,
+		}
+		conn, err := tls.Dial("tcp", *app.config.install.hostname+":"+strconv.Itoa(*app.config.install.webUISSLPort), conf)
+		if err != nil {
+			return fmt.Errorf("install: failed to dial webui for verification (%s)", err)
+		}
+		defer conn.Close()
+
+		// get top cert
+		leafCert := conn.ConnectionState().PeerCertificates[0]
+		if leafCert == nil {
+			return fmt.Errorf("install: failed to get web ui leaf cert for verification (%s)", err)
+		}
+
+		// convert pem to DER for comparison
+		pemBlock, _ := pem.Decode(certPem)
+
+		// verify cert is the correct one
+		certVerified := bytes.Equal(leafCert.Raw, pemBlock.Bytes)
+		if !certVerified {
+			return errors.New("install: web ui leaf cert does not match new cert")
+		}
+
+		app.stdLogger.Println("install: ups web ui cert verified")
+	}
+
 	return nil
 }
--- a/pkg/app/config.go
+++ b/pkg/app/config.go
@ -33,11 +33,14 @@ type config struct {
 	}
 	install struct {
 		keyCertPemCfg
-		hostAndPort    *string
+		hostname       *string
+		sshport        *int
 		fingerprint    *string
 		username       *string
 		password       *string
 		restartWebUI   *bool
+		webUISSLPort   *int
+		skipVerify     *bool
 		insecureCipher *bool
 	}
 }
@ -68,9 +71,9 @@ func (app *app) getConfig(args []string) error {
 	// create -- subcommand
 	createFlags := ff.NewFlagSet("create").SetParent(rootFlags)

-	cfg.create.keyPemFilePath = createFlags.StringLong("keyfile", "", "path and filename of the rsa-1024 or rsa-2048 key in pem format")
+	cfg.create.keyPemFilePath = createFlags.StringLong("keyfile", "", "path and filename of the key in pem format")
 	cfg.create.certPemFilePath = createFlags.StringLong("certfile", "", "path and filename of the certificate in pem format")
-	cfg.create.keyPem = createFlags.StringLong("keypem", "", "string of the rsa-1024 or rsa-2048 key in pem format")
+	cfg.create.keyPem = createFlags.StringLong("keypem", "", "string of the key in pem format")
 	cfg.create.certPem = createFlags.StringLong("certpem", "", "string of the certificate in pem format")
 	cfg.create.outFilePath = createFlags.StringLong("outfile", createDefaultOutFilePath, "path and filename to write the key+cert p15 file to")
 	cfg.create.outKeyFilePath = createFlags.StringLong("outkeyfile", createDefaultOutKeyFilePath, "path and filename to write the key p15 file to")
@ -88,20 +91,23 @@ func (app *app) getConfig(args []string) error {
 	// install -- subcommand
 	installFlags := ff.NewFlagSet("install").SetParent(rootFlags)

-	cfg.install.keyPemFilePath = installFlags.StringLong("keyfile", "", "path and filename of the rsa-1024 or rsa-2048 key in pem format")
+	cfg.install.keyPemFilePath = installFlags.StringLong("keyfile", "", "path and filename of the key in pem format")
 	cfg.install.certPemFilePath = installFlags.StringLong("certfile", "", "path and filename of the certificate in pem format")
-	cfg.install.keyPem = installFlags.StringLong("keypem", "", "string of the rsa-1024 or rsa-2048 key in pem format")
+	cfg.install.keyPem = installFlags.StringLong("keypem", "", "string of the key in pem format")
 	cfg.install.certPem = installFlags.StringLong("certpem", "", "string of the certificate in pem format")
-	cfg.install.hostAndPort = installFlags.StringLong("apchost", "", "hostname:port of the apc ups to install the certificate on")
+	cfg.install.hostname = installFlags.StringLong("hostname", "", "hostname of the apc ups to install the certificate on")
+	cfg.install.sshport = installFlags.IntLong("sshport", 22, "apc ups ssh port number")
 	cfg.install.fingerprint = installFlags.StringLong("fingerprint", "", "the SHA256 fingerprint value of the ups' ssh server")
 	cfg.install.username = installFlags.StringLong("username", "", "username to login to the apc ups")
 	cfg.install.password = installFlags.StringLong("password", "", "password to login to the apc ups")
 	cfg.install.restartWebUI = installFlags.BoolLong("restartwebui", "some devices may need a webui restart to begin using the new cert, enabling this option sends the restart command after the p15 is installed")
+	cfg.install.webUISSLPort = installFlags.IntLong("sslport", 443, "apc ups ssl webui port number")
+	cfg.install.skipVerify = installFlags.BoolLong("skipverify", "the tool will try to connect to the UPS web UI to verify install success; this flag disables that check")
 	cfg.install.insecureCipher = installFlags.BoolLong("insecurecipher", "allows the use of insecure ssh ciphers (NOT recommended)")

 	installCmd := &ff.Command{
 		Name:      "install",
-		Usage:     "apc-p15-tool install --keyfile key.pem --certfile cert.pem --apchost example.com:22 --fingerprint 123abc --username apc --password test",
+		Usage:     "apc-p15-tool install --keyfile key.pem --certfile cert.pem --hostname example.com --fingerprint 123abc --username apc --password test",
 		ShortHelp: "install the specified key and cert pem files on an apc ups (they will be converted to a comaptible p15 file)",
 		Flags:     installFlags,
 		Exec:      app.cmdInstall,
--- a/pkg/app/pem_to_p15.go
+++ b/pkg/app/pem_to_p15.go
@ -3,13 +3,22 @@ package app
 import (
 	"apc-p15-tool/pkg/pkcs15"
 	"fmt"
+	"slices"
 )

-// pemToAPCP15 reads the specified pem files and returns the apc p15 files (both a
-// p15 file with just the private key, and also a p15 file with both the private key
-// and certificate). The key+cert file includes the required APC header, prepended.
+// list of keys supported by the NMC2
+var nmc2SupportedKeyTypes = []pkcs15.KeyType{
+	pkcs15.KeyTypeRSA1024,
+	pkcs15.KeyTypeRSA2048,
+	pkcs15.KeyTypeRSA3072, // officially not supported but works
+}
+
+// pemToAPCP15 reads the specified pem files and returns the apc p15 file(s). If the
+// key type of the key is not supported by NMC2, the combined key+cert file is not
+// generated and nil is returned instead for that file. If the key IS supported by
+// NMC2, the key+cert file is generated and the proper header is prepended.
 func (app *app) pemToAPCP15(keyPem, certPem []byte, parentCmdName string) (keyFile []byte, apcKeyCertFile []byte, err error) {
-	app.stdLogger.Printf("%s: making apc p15 file from pem", parentCmdName)
+	app.stdLogger.Printf("%s: making apc p15 file(s) content from pem", parentCmdName)

 	// make p15 struct
 	p15, err := pkcs15.ParsePEMToPKCS15(keyPem, certPem)
@ -17,24 +26,40 @@ func (app *app) pemToAPCP15(keyPem, certPem []byte, parentCmdName string) (keyFi
 		return nil, nil, fmt.Errorf("%s: failed to parse pem files (%w)", parentCmdName, err)
 	}

-	app.stdLogger.Printf("%s: successfully loaded pem files", parentCmdName)
+	app.stdLogger.Printf("%s: successfully parsed pem files", parentCmdName)

-	// make file bytes
-	keyCertFile, keyFile, err := p15.ToP15Files()
+	// make key file (always)
+	keyFile, err = p15.ToP15Key()
 	if err != nil {
-		return nil, nil, fmt.Errorf("%s: failed to make p15 file (%w)", parentCmdName, err)
+		return nil, nil, fmt.Errorf("%s: failed to make p15 key file (%w)", parentCmdName, err)
 	}

-	// make header for file bytes
-	apcHeader, err := makeFileHeader(keyCertFile)
-	if err != nil {
-		return nil, nil, fmt.Errorf("%s: failed to make p15 file header (%w)", parentCmdName, err)
+	app.stdLogger.Printf("%s: successfully generated p15 key file content", parentCmdName)
+
+	// check key type for compat with NMC2
+	if slices.Contains(nmc2SupportedKeyTypes, p15.KeyType()) {
+		app.stdLogger.Printf("%s: key type is supported by NMC2, generating p15 key+cert file content...", parentCmdName)
+
+		// make file bytes
+		keyCertFile, err := p15.ToP15KeyCert()
+		if err != nil {
+			return nil, nil, fmt.Errorf("%s: failed to make p15 key+cert file content (%w)", parentCmdName, err)
+		}
+
+		// make header for file bytes
+		apcHeader, err := makeFileHeader(keyCertFile)
+		if err != nil {
+			return nil, nil, fmt.Errorf("%s: failed to make p15 key+cert file header (%w)", parentCmdName, err)
+		}
+
+		// combine header with file
+		apcKeyCertFile = append(apcHeader, keyCertFile...)
+	} else {
+		// NMC2 unsupported
+		app.stdLogger.Printf("%s: key type is not supported by NMC2, skipping p15 key+cert file content", parentCmdName)
 	}

-	// combine header with file
-	apcKeyCertFile = append(apcHeader, keyCertFile...)
-
-	app.stdLogger.Printf("%s: apc p15 file data succesfully generated", parentCmdName)
+	app.stdLogger.Printf("%s: apc p15 file(s) data succesfully generated", parentCmdName)

 	return keyFile, apcKeyCertFile, nil
 }
--- a/pkg/pkcs15/encrypted_envelope.go
+++ b/pkg/pkcs15/encrypted_envelope.go
@ -21,14 +21,19 @@ const (
 	apcKEKIterations = 5000
 )

-// encryptedKeyEnvelope encrypts p15's rsa private key using the algorithms and
-// params expected in the APC file. Salt values are always random.
-func (p15 *pkcs15KeyCert) encryptedKeyEnvelope() ([]byte, error) {
+// encryptedKeyEnvelope encrypts p15's private key using the algorithms and
+// params expected in the APC file.
+func (p15 *pkcs15KeyCert) computeEncryptedKeyEnvelope() error {
+	// if computation already performed, this is a no-op (keep existing envelope)
+	if p15.envelopedPrivateKey != nil && len(p15.envelopedPrivateKey) != 0 {
+		return nil
+	}
+
 	// calculate values for the object
 	kekSalt := make([]byte, 8)
 	_, err := rand.Read(kekSalt)
 	if err != nil {
-		return nil, err
+		return err
 	}

 	// kek hash alg
@ -42,7 +47,7 @@ func (p15 *pkcs15KeyCert) encryptedKeyEnvelope() ([]byte, error) {
 	// make DES cipher from KEK for CEK
 	cekDesCipher, err := des.NewTripleDESCipher(kek)
 	if err != nil {
-		return nil, err
+		return err
 	}

 	// cek (16 bytes for authEnc128) -- see: rfc3211
@ -50,7 +55,7 @@ func (p15 *pkcs15KeyCert) encryptedKeyEnvelope() ([]byte, error) {
 	cek := make([]byte, cekLen)
 	_, err = rand.Read(cek)
 	if err != nil {
-		return nil, err
+		return err
 	}

 	// LEN + Check Val [3]
@ -71,7 +76,7 @@ func (p15 *pkcs15KeyCert) encryptedKeyEnvelope() ([]byte, error) {
 	cekPadding := make([]byte, cekPadLen)
 	_, err = rand.Read(cekPadding)
 	if err != nil {
-		return nil, err
+		return err
 	}

 	wrappedCEK = append(wrappedCEK, cekPadding...)
@ -80,7 +85,7 @@ func (p15 *pkcs15KeyCert) encryptedKeyEnvelope() ([]byte, error) {
 	cekEncryptSalt := make([]byte, 8)
 	_, err = rand.Read(cekEncryptSalt)
 	if err != nil {
-		return nil, err
+		return err
 	}

 	cekEncrypter := cipher.NewCBCEncrypter(cekDesCipher, cekEncryptSalt)
@ -94,13 +99,13 @@ func (p15 *pkcs15KeyCert) encryptedKeyEnvelope() ([]byte, error) {
 	contentEncSalt := make([]byte, 8)
 	_, err = rand.Read(contentEncSalt)
 	if err != nil {
-		return nil, err
+		return err
 	}

 	contentEncryptKey := pbkdf2.Key(cek, []byte("encryption"), 1, 24, sha1.New)
 	contentDesCipher, err := des.NewTripleDESCipher(contentEncryptKey)
 	if err != nil {
-		return nil, err
+		return err
 	}

 	// envelope content (that will be encrypted)
@ -151,7 +156,7 @@ func (p15 *pkcs15KeyCert) encryptedKeyEnvelope() ([]byte, error) {
 	// make MAC
 	_, err = macHasher.Write(hashMe)
 	if err != nil {
-		return nil, err
+		return err
 	}
 	mac := macHasher.Sum(nil)

@ -218,5 +223,7 @@ func (p15 *pkcs15KeyCert) encryptedKeyEnvelope() ([]byte, error) {
 		finalEnv = append(finalEnv, envelope[i]...)
 	}

-	return finalEnv, nil
+	// set p15 struct envelope
+	p15.envelopedPrivateKey = finalEnv
+	return nil
 }
--- a/pkg/pkcs15/keyid.go
+++ b/pkg/pkcs15/keyid.go
@ -2,6 +2,8 @@ package pkcs15

 import (
 	"apc-p15-tool/pkg/tools/asn1obj"
+	"crypto/ecdsa"
+	"crypto/rsa"
 	"crypto/sha1"
 	"encoding/binary"
 	"math/big"
@ -11,22 +13,6 @@ import (
 func (p15 *pkcs15KeyCert) keyId() []byte {
 	// object to hash is just the RawSubjectPublicKeyInfo

-	// Create Object to hash
-	// hashObj := asn1obj.Sequence([][]byte{
-	// 	asn1obj.Sequence([][]byte{
-	// 		// Key is RSA
-	// 		asn1obj.ObjectIdentifier(asn1obj.OIDrsaEncryptionPKCS1),
-	// 		asn1.NullBytes,
-	// 	}),
-	// 	// BIT STRING of rsa key public key
-	// 	asn1obj.BitString(
-	// 		asn1obj.Sequence([][]byte{
-	// 			asn1obj.Integer(p15.key.N),
-	// 			asn1obj.Integer((big.NewInt(int64(p15.key.E)))),
-	// 		}),
-	// 	),
-	// })
-
 	// SHA-1 Hash
 	hasher := sha1.New()
 	_, err := hasher.Write(p15.cert.RawSubjectPublicKeyInfo)
@ -124,18 +110,32 @@ func (p15 *pkcs15KeyCert) keyIdInt7() []byte {
 }

 // keyIdInt8 returns the sequence for keyId with INT val of 8; This value is equivelant
-// to "pgp", which is PGP v3 key Id. This value is just the last 8 bytes of the public
-// key N value
+// to "pgp", which is PGP v3 key Id.
 func (p15 *pkcs15KeyCert) keyIdInt8() []byte {
-	nBytes := p15.key.N.Bytes()
+	var keyIdVal []byte
+
+	switch privKey := p15.key.(type) {
+	case *rsa.PrivateKey:
+		// RSA: The ID value is just the last 8 bytes of the public key N value
+		nBytes := privKey.N.Bytes()
+		keyIdVal = nBytes[len(nBytes)-8:]
+
+	case *ecdsa.PrivateKey:
+		// don't use this key id, leave empty
+		return nil
+
+	default:
+		// panic if unexpected key type
+		panic("key id 8 for key is unexpected and unsupported")
+	}

 	// object to return
-	obj := asn1obj.Sequence([][]byte{
+	idObj := asn1obj.Sequence([][]byte{
 		asn1obj.Integer(big.NewInt(8)),
-		asn1obj.OctetString(nBytes[len(nBytes)-8:]),
+		asn1obj.OctetString(keyIdVal),
 	})

-	return obj
+	return idObj
 }

 // bigIntToMpi returns the MPI (as defined in RFC 4880 s 3.2) from a given
@ -156,33 +156,44 @@ func (p15 *pkcs15KeyCert) keyIdInt9() []byte {
 	// Public-Key packet starting with the version field.  The Key ID is the
 	// low-order 64 bits of the fingerprint.

-	// the entire Public-Key packet
+	// first make the public key packet
 	publicKeyPacket := []byte{}

 	// starting with the version field (A one-octet version number (4)).
 	publicKeyPacket = append(publicKeyPacket, byte(4))

 	// A four-octet number denoting the time that the key was created.
-	time := make([]byte, 4)
-
 	// NOTE: use cert validity start as proxy for key creation since key pem
 	// doesn't actually contain a created at time -- in reality notBefore tends
 	// to be ~ 1 hour ish BEFORE the cert was even created. Key would also
 	// obviously have to be created prior to the cert creation.
+	time := make([]byte, 4)
 	binary.BigEndian.PutUint32(time, uint32(p15.cert.NotBefore.Unix()))
 	publicKeyPacket = append(publicKeyPacket, time...)

-	// A one-octet number denoting the public-key algorithm of this key.
-	// 1 - RSA (Encrypt or Sign) [HAC]
-	publicKeyPacket = append(publicKeyPacket, byte(1))
+	// the next part is key type specific
+	switch privKey := p15.key.(type) {
+	case *rsa.PrivateKey:
+		// A one-octet number denoting the public-key algorithm of this key.
+		// 1 - RSA (Encrypt or Sign) [HAC]
+		publicKeyPacket = append(publicKeyPacket, byte(1))

-	// Algorithm-Specific Fields for RSA public keys:
-	// multiprecision integer (MPI) of RSA public modulus n
-	publicKeyPacket = append(publicKeyPacket, bigIntToMpi(p15.key.N)...)
+		// Algorithm-Specific Fields for RSA public keys:
+		// multiprecision integer (MPI) of RSA public modulus n
+		publicKeyPacket = append(publicKeyPacket, bigIntToMpi(privKey.N)...)

-	// MPI of RSA public encryption exponent e
-	e := big.NewInt(int64(p15.key.PublicKey.E))
-	publicKeyPacket = append(publicKeyPacket, bigIntToMpi(e)...)
+		// MPI of RSA public encryption exponent e
+		e := big.NewInt(int64(privKey.PublicKey.E))
+		publicKeyPacket = append(publicKeyPacket, bigIntToMpi(e)...)
+
+	case *ecdsa.PrivateKey:
+		// don't use this key id, leave empty
+		return nil
+
+	default:
+		// panic if unexpected key type
+		panic("key id 9 for key is unexpected and unsupported")
+	}

 	// Assemble the V4 byte array that will be hashed
 	// 0x99 (1 octet)
@ -205,10 +216,10 @@ func (p15 *pkcs15KeyCert) keyIdInt9() []byte {
 	keyId := sha1Hash[len(sha1Hash)-8:]

 	// object to return
-	obj := asn1obj.Sequence([][]byte{
+	idObj := asn1obj.Sequence([][]byte{
 		asn1obj.Integer(big.NewInt(9)),
 		asn1obj.OctetString(keyId),
 	})

-	return obj
+	return idObj
 }
--- a/pkg/pkcs15/pem_decode.go
+++ b/pkg/pkcs15/pem_decode.go
@ -1,28 +1,37 @@
 package pkcs15

 import (
+	"crypto"
+	"crypto/ecdsa"
 	"crypto/rsa"
 	"crypto/tls"
 	"crypto/x509"
 	"encoding/pem"
 	"errors"
 	"fmt"
+	"reflect"
+	"slices"
 )

 var (
 	errPemKeyBadBlock       = errors.New("pkcs15: pem key: failed to decode pem block")
 	errPemKeyFailedToParse  = errors.New("pkcs15: pem key: failed to parse key")
-	errPemKeyWrongBlockType = errors.New("pkcs15: pem key: unsupported pem block type (only pkcs1 and pkcs8 supported)")
-	errPemKeyWrongType      = errors.New("pkcs15: pem key: unsupported key type (only rsa 1,024 or 2,048 supported)")
+	errPemKeyWrongBlockType = errors.New("pkcs15: pem key: unsupported pem block type")
+	errKeyWrongType         = errors.New("pkcs15: pem key: unsupported key type")

 	errPemCertBadBlock      = errors.New("pkcs15: pem cert: failed to decode pem block")
 	errPemCertFailedToParse = errors.New("pkcs15: pem cert: failed to parse cert")
 )

+var (
+	supportedRSASizes    = []int{1024, 2048, 3072, 4096}
+	supportedECDSACurves = []string{"P-256", "P-384", "P-521"}
+)
+
 // pemKeyDecode attempts to decode a pem encoded byte slice and then attempts
-// to parse an RSA private key from the decoded pem block. an error is returned
-// if any of these steps fail OR if the key is not RSA and of bitlen 1,024 or 2,048
-func pemKeyDecode(keyPem []byte) (*rsa.PrivateKey, error) {
+// to parse a private key from the decoded pem block. an error is returned
+// if any of these steps fail OR if the key is not supported.
+func pemKeyDecode(keyPem []byte) (crypto.PrivateKey, error) {
 	// decode
 	pemBlock, _ := pem.Decode([]byte(keyPem))
 	if pemBlock == nil {
@ -30,13 +39,11 @@ func pemKeyDecode(keyPem []byte) (*rsa.PrivateKey, error) {
 	}

 	// parsing depends on block type
-	var rsaKey *rsa.PrivateKey
+	var privateKey crypto.PrivateKey

 	switch pemBlock.Type {
 	case "RSA PRIVATE KEY": // PKCS1
-		var err error
-
-		rsaKey, err = x509.ParsePKCS1PrivateKey(pemBlock.Bytes)
+		rsaKey, err := x509.ParsePKCS1PrivateKey(pemBlock.Bytes)
 		if err != nil {
 			return nil, errPemKeyFailedToParse
 		}
@ -47,12 +54,27 @@ func pemKeyDecode(keyPem []byte) (*rsa.PrivateKey, error) {
 			return nil, fmt.Errorf("pkcs15: pem key: failed sanity check (%s)", err)
 		}

-		// verify proper bitlen
-		if rsaKey.N.BitLen() != 1024 && rsaKey.N.BitLen() != 2048 {
-			return nil, errPemKeyWrongType
+		// verify supported rsa bitlen
+		if !slices.Contains(supportedRSASizes, rsaKey.N.BitLen()) {
+			return nil, errKeyWrongType
 		}

 		// good to go
+		privateKey = rsaKey
+
+	case "EC PRIVATE KEY": // SEC1, ASN.1
+		ecdKey, err := x509.ParseECPrivateKey(pemBlock.Bytes)
+		if err != nil {
+			return nil, errPemKeyFailedToParse
+		}
+
+		// verify supported curve name
+		if !slices.Contains(supportedECDSACurves, ecdKey.Curve.Params().Name) {
+			return nil, errKeyWrongType
+		}
+
+		// good to go
+		privateKey = ecdKey

 	case "PRIVATE KEY": // PKCS8
 		pkcs8Key, err := x509.ParsePKCS8PrivateKey(pemBlock.Bytes)
@ -62,23 +84,31 @@ func pemKeyDecode(keyPem []byte) (*rsa.PrivateKey, error) {

 		switch pkcs8Key := pkcs8Key.(type) {
 		case *rsa.PrivateKey:
-			rsaKey = pkcs8Key
-
 			// basic sanity check
-			err = rsaKey.Validate()
+			err = pkcs8Key.Validate()
 			if err != nil {
 				return nil, fmt.Errorf("pkcs15: pem key: failed sanity check (%s)", err)
 			}

-			// verify proper bitlen
-			if rsaKey.N.BitLen() != 1024 && rsaKey.N.BitLen() != 2048 {
-				return nil, errPemKeyWrongType
+			// verify supported rsa bitlen
+			if !slices.Contains(supportedRSASizes, pkcs8Key.N.BitLen()) {
+				return nil, errKeyWrongType
 			}

 			// good to go
+			privateKey = pkcs8Key
+
+		case *ecdsa.PrivateKey:
+			// verify supported curve name
+			if !slices.Contains(supportedECDSACurves, pkcs8Key.Curve.Params().Name) {
+				return nil, errKeyWrongType
+			}
+
+			// good to go
+			privateKey = pkcs8Key

 		default:
-			return nil, errPemKeyWrongType
+			return nil, errKeyWrongType
 		}

 	default:
@ -86,12 +116,12 @@ func pemKeyDecode(keyPem []byte) (*rsa.PrivateKey, error) {
 	}

 	// if rsaKey is nil somehow, error
-	if rsaKey == nil {
+	if reflect.ValueOf(privateKey).IsNil() {
 		return nil, errors.New("pkcs15: pem key: rsa key unexpectedly nil (report bug to project repo)")
 	}

 	// success!
-	return rsaKey, nil
+	return privateKey, nil
 }

 // pemCertDecode attempts to decode a pem encoded byte slice and then attempts
--- a/pkg/pkcs15/pem_parse.go
+++ b/pkg/pkcs15/pem_parse.go
@ -1,6 +1,8 @@
 package pkcs15

 import (
+	"crypto"
+	"crypto/ecdsa"
 	"crypto/rsa"
 	"crypto/x509"
 )
@ -8,8 +10,61 @@ import (
 // pkcs15KeyCert holds the data for a key and certificate pair; it provides
 // various methods to transform pkcs15 data
 type pkcs15KeyCert struct {
-	key  *rsa.PrivateKey
+	key  crypto.PrivateKey
 	cert *x509.Certificate
+	// store the encrypted enveloped Private Key for re-use
+	envelopedPrivateKey []byte
+}
+
+// KeyType is used by consumers to check for compatibility
+type KeyType int
+
+const (
+	KeyTypeRSA1024 KeyType = iota
+	KeyTypeRSA2048
+	KeyTypeRSA3072
+	KeyTypeRSA4096
+
+	KeyTypeECP256
+	KeyTypeECP384
+	KeyTypeECP521
+
+	KeyTypeUnknown
+)
+
+// KeyType returns the private key type
+func (p15 *pkcs15KeyCert) KeyType() KeyType {
+	switch pKey := p15.key.(type) {
+	case *rsa.PrivateKey:
+		switch pKey.N.BitLen() {
+		case 1024:
+			return KeyTypeRSA1024
+		case 2048:
+			return KeyTypeRSA2048
+		case 3072:
+			return KeyTypeRSA3072
+		case 4096:
+			return KeyTypeRSA4096
+
+		default:
+		}
+
+	case *ecdsa.PrivateKey:
+		switch pKey.Curve.Params().Name {
+		case "P-256":
+			return KeyTypeECP256
+		case "P-384":
+			return KeyTypeECP384
+		case "P-521":
+			return KeyTypeECP521
+
+		default:
+		}
+
+	default:
+	}
+
+	return KeyTypeUnknown
 }

 // ParsePEMToPKCS15 parses the provide pem files to a pkcs15 struct; it also does some
@ -27,10 +82,17 @@ func ParsePEMToPKCS15(keyPem, certPem []byte) (*pkcs15KeyCert, error) {
 		return nil, err
 	}

+	// create p15 struct
 	p15 := &pkcs15KeyCert{
 		key:  key,
 		cert: cert,
 	}

+	// pre-calculate encrypted envelope
+	err = p15.computeEncryptedKeyEnvelope()
+	if err != nil {
+		return nil, err
+	}
+
 	return p15, nil
 }
--- a/pkg/pkcs15/pem_to_p15.go
+++ b/pkg/pkcs15/pem_to_p15.go
@ -2,7 +2,10 @@ package pkcs15

 import (
 	"apc-p15-tool/pkg/tools/asn1obj"
+	"crypto/ecdsa"
+	"crypto/rsa"
 	"encoding/asn1"
+	"fmt"
 	"math/big"
 )

@ -12,39 +15,87 @@ const (

 // toP15KeyCert creates a P15 file with both the private key and certificate, mirroring the
 // final p15 file an APC UPS expects (though without the header)
-func (p15 *pkcs15KeyCert) toP15KeyCert(keyEnvelope []byte) (keyCert []byte, err error) {
-	// private key object
-	privateKey := asn1obj.Sequence([][]byte{
-		// commonObjectAttributes - Label
-		asn1obj.Sequence([][]byte{
-			asn1obj.UTF8String(apcKeyLabel),
-		}),
-		// CommonKeyAttributes
-		asn1obj.Sequence([][]byte{
-			// CommonKeyAttributes - iD - uses keyId that is SHA1( SubjectPublicKeyInfo SEQUENCE )
-			asn1obj.OctetString(p15.keyId()),
-			// CommonKeyAttributes - usage (trailing 0s will drop)
-			asn1obj.BitString([]byte{byte(0b11100010)}),
-			// CommonKeyAttributes - accessFlags (trailing 0s will drop)
-			asn1obj.BitString([]byte{byte(0b10110000)}),
-			// CommonKeyAttributes - startDate
-			asn1obj.GeneralizedTime(p15.cert.NotBefore),
-			// CommonKeyAttributes - [0] endDate
-			asn1obj.GeneralizedTimeExplicitValue(0, p15.cert.NotAfter),
-		}),
-		// ObjectValue - indirect-protected
-		asn1obj.ExplicitCompound(1, [][]byte{
+func (p15 *pkcs15KeyCert) ToP15KeyCert() (keyCert []byte, err error) {
+	// encrypted envelope is required
+	err = p15.computeEncryptedKeyEnvelope()
+	if err != nil {
+		return nil, err
+	}
+
+	// create private key object
+	var privKeyObj []byte
+
+	switch p15.key.(type) {
+	case *rsa.PrivateKey:
+		// private key object
+		privKeyObj =
 			asn1obj.Sequence([][]byte{
-				// AuthEnvelopedData Type ([4])
-				asn1obj.ExplicitCompound(4, [][]byte{
-					keyEnvelope,
+				// commonObjectAttributes - Label
+				asn1obj.Sequence([][]byte{
+					asn1obj.UTF8String(apcKeyLabel),
 				}),
-			}),
-		}),
-	})
+				// CommonKeyAttributes
+				asn1obj.Sequence([][]byte{
+					// CommonKeyAttributes - iD - uses keyId that is SHA1( SubjectPublicKeyInfo SEQUENCE )
+					asn1obj.OctetString(p15.keyId()),
+					// CommonKeyAttributes - usage (trailing 0s will drop)
+					asn1obj.BitString([]byte{byte(0b11100010)}),
+					// CommonKeyAttributes - accessFlags (trailing 0s will drop)
+					asn1obj.BitString([]byte{byte(0b10110000)}),
+					// CommonKeyAttributes - startDate
+					asn1obj.GeneralizedTime(p15.cert.NotBefore),
+					// CommonKeyAttributes - [0] endDate
+					asn1obj.GeneralizedTimeExplicitValue(0, p15.cert.NotAfter),
+				}),
+				// ObjectValue - indirect-protected
+				asn1obj.ExplicitCompound(1, [][]byte{
+					asn1obj.Sequence([][]byte{
+						// AuthEnvelopedData Type ([4])
+						asn1obj.ExplicitCompound(4, [][]byte{
+							p15.envelopedPrivateKey,
+						}),
+					}),
+				}),
+			})
+
+	case *ecdsa.PrivateKey:
+		privKeyObj =
+			asn1obj.ExplicitCompound(0, [][]byte{
+				// commonObjectAttributes - Label
+				asn1obj.Sequence([][]byte{
+					asn1obj.UTF8String(apcKeyLabel),
+				}),
+				// CommonKeyAttributes
+				asn1obj.Sequence([][]byte{
+					// CommonKeyAttributes - iD - uses keyId that is SHA1( SubjectPublicKeyInfo SEQUENCE )
+					asn1obj.OctetString(p15.keyId()),
+					// CommonKeyAttributes - usage (trailing 0s will drop)
+					asn1obj.BitString([]byte{byte(0b00100010)}),
+					// CommonKeyAttributes - accessFlags (trailing 0s will drop)
+					asn1obj.BitString([]byte{byte(0b10110000)}),
+					// CommonKeyAttributes - startDate
+					asn1obj.GeneralizedTime(p15.cert.NotBefore),
+					// CommonKeyAttributes - [0] endDate
+					asn1obj.GeneralizedTimeExplicitValue(0, p15.cert.NotAfter),
+				}),
+				// ObjectValue - indirect-protected
+				asn1obj.ExplicitCompound(1, [][]byte{
+					asn1obj.Sequence([][]byte{
+						// AuthEnvelopedData Type ([4])
+						asn1obj.ExplicitCompound(4, [][]byte{
+							p15.envelopedPrivateKey,
+						}),
+					}),
+				}),
+			})
+
+	default:
+		// bad key type
+		return nil, errKeyWrongType
+	}

 	// cert object
-	cert := asn1obj.Sequence([][]byte{
+	certObj := asn1obj.Sequence([][]byte{
 		// commonObjectAttributes - Label
 		asn1obj.Sequence([][]byte{
 			asn1obj.UTF8String(apcKeyLabel),
@ -58,6 +109,7 @@ func (p15 *pkcs15KeyCert) toP15KeyCert(keyEnvelope []byte) (keyCert []byte, err
 				p15.keyIdInt3(),
 				p15.keyIdInt6(),
 				p15.keyIdInt7(),
+				// 8 & 9 will return nil for EC keys (effectively omitting them)
 				p15.keyIdInt8(),
 				p15.keyIdInt9(),
 			}),
@ -76,7 +128,7 @@ func (p15 *pkcs15KeyCert) toP15KeyCert(keyEnvelope []byte) (keyCert []byte, err
 		}),
 	})

-	// build the file
+	// build the object

 	// ContentInfo
 	keyCert = asn1obj.Sequence([][]byte{
@ -91,12 +143,12 @@ func (p15 *pkcs15KeyCert) toP15KeyCert(keyEnvelope []byte) (keyCert []byte, err
 				asn1obj.Sequence([][]byte{
 					asn1obj.ExplicitCompound(0, [][]byte{
 						asn1obj.ExplicitCompound(0, [][]byte{
-							privateKey,
+							privKeyObj,
 						}),
 					}),
 					asn1obj.ExplicitCompound(4, [][]byte{
 						asn1obj.ExplicitCompound(0, [][]byte{
-							cert,
+							certObj,
 						}),
 					}),
 				}),
@ -110,129 +162,212 @@ func (p15 *pkcs15KeyCert) toP15KeyCert(keyEnvelope []byte) (keyCert []byte, err
 // toP15Key creates a P15 file with just the private key, mirroring the p15 format
 // the APC tool uses when generating a new private key (Note: no header is used on
 // this file)
-func (p15 *pkcs15KeyCert) toP15Key(keyEnvelope []byte) (key []byte, err error) {
-	// private key object (slightly different than the key+cert format)
-	privateKey := asn1obj.Sequence([][]byte{
-		// commonObjectAttributes - Label
-		asn1obj.Sequence([][]byte{
-			asn1obj.UTF8String(apcKeyLabel),
-		}),
-		// CommonKeyAttributes
-		asn1obj.Sequence([][]byte{
-			// CommonKeyAttributes - iD - uses keyId that is SHA1( SubjectPublicKeyInfo SEQUENCE )
-			asn1obj.OctetString(p15.keyId()),
-			// CommonKeyAttributes - usage (trailing 0s will drop)
-			asn1obj.BitString([]byte{byte(0b11100010)}),
-			// CommonKeyAttributes - accessFlags (trailing 0s will drop)
-			asn1obj.BitString([]byte{byte(0b10110000)}),
-		}),
+func (p15 *pkcs15KeyCert) ToP15Key() (key []byte, err error) {
+	// encrypted envelope is required
+	err = p15.computeEncryptedKeyEnvelope()
+	if err != nil {
+		return nil, err
+	}

-		//
-		asn1obj.ExplicitCompound(0, [][]byte{
+	// create private and public key objects
+	var pubKeyObj, privKeyObj []byte
+
+	switch privKey := p15.key.(type) {
+	case *rsa.PrivateKey:
+		// private key object (slightly different than the key+cert format)
+		privKeyObj =
 			asn1obj.Sequence([][]byte{
-				asn1obj.ExplicitCompound(0, [][]byte{
-					p15.keyIdInt2(),
-					p15.keyIdInt8(),
-					p15.keyIdInt9(),
-				}),
-			}),
-		}),
-
-		// ObjectValue - indirect-protected
-		asn1obj.ExplicitCompound(1, [][]byte{
-			asn1obj.Sequence([][]byte{
-				// AuthEnvelopedData Type ([4])
-				asn1obj.ExplicitCompound(4, [][]byte{
-					keyEnvelope,
-				}),
-			}),
-		}),
-	})
-
-	// ContentInfo
-	key = asn1obj.Sequence([][]byte{
-
-		// contentType: OID: 1.2.840.113549.1.15.3.1 pkcs15content (PKCS #15 content type)
-		asn1obj.ObjectIdentifier(asn1obj.OIDPkscs15Content),
-
-		// content
-		asn1obj.ExplicitCompound(0, [][]byte{
-			asn1obj.Sequence([][]byte{
-				asn1obj.Integer(big.NewInt(0)),
+				// commonObjectAttributes - Label
 				asn1obj.Sequence([][]byte{
-					// [0] Private Key
-					asn1obj.ExplicitCompound(0, [][]byte{
+					asn1obj.UTF8String(apcKeyLabel),
+				}),
+				// CommonKeyAttributes
+				asn1obj.Sequence([][]byte{
+					// CommonKeyAttributes - iD - uses keyId that is SHA1( SubjectPublicKeyInfo SEQUENCE )
+					asn1obj.OctetString(p15.keyId()),
+					// CommonKeyAttributes - usage (trailing 0s will drop)
+					asn1obj.BitString([]byte{byte(0b11100010)}),
+					// CommonKeyAttributes - accessFlags (trailing 0s will drop)
+					asn1obj.BitString([]byte{byte(0b10110000)}),
+				}),
+
+				// Key IDs
+				asn1obj.ExplicitCompound(0, [][]byte{
+					asn1obj.Sequence([][]byte{
 						asn1obj.ExplicitCompound(0, [][]byte{
-							privateKey,
+							p15.keyIdInt2(),
+							p15.keyIdInt8(),
+							p15.keyIdInt9(),
 						}),
 					}),
-					// [1] Public Key
-					asn1obj.ExplicitCompound(1, [][]byte{
+				}),
+
+				// ObjectValue - indirect-protected
+				asn1obj.ExplicitCompound(1, [][]byte{
+					asn1obj.Sequence([][]byte{
+						// AuthEnvelopedData Type ([4])
+						asn1obj.ExplicitCompound(4, [][]byte{
+							p15.envelopedPrivateKey,
+						}),
+					}),
+				}),
+			})
+
+		// pub key stub
+		pubKeyObj =
+			asn1obj.Sequence([][]byte{
+				// commonObjectAttributes - Label
+				asn1obj.Sequence([][]byte{
+					asn1obj.UTF8String(apcKeyLabel),
+				}),
+				// CommonKeyAttributes
+				asn1obj.Sequence([][]byte{
+					asn1obj.OctetString(p15.keyId()),
+					asn1obj.BitString([]byte{byte(0b10000010)}),
+					asn1obj.BitString([]byte{byte(0b01000000)}),
+				}),
+
+				asn1obj.ExplicitCompound(1, [][]byte{
+					asn1obj.Sequence([][]byte{
+						asn1obj.ExplicitCompound(0, [][]byte{
+							asn1obj.ExplicitCompound(1, [][]byte{
+								asn1obj.Sequence([][]byte{
+									asn1obj.ObjectIdentifier(asn1obj.OIDrsaEncryptionPKCS1),
+									asn1.NullBytes,
+								}),
+								// RSAPublicKey SubjectPublicKeyInfo
+								asn1obj.BitString(
+									asn1obj.Sequence([][]byte{
+										asn1obj.Integer(privKey.PublicKey.N),
+										asn1obj.Integer(big.NewInt(int64(privKey.PublicKey.E))),
+									}),
+								),
+							}),
+						}),
+						// not 100% certain but appears to be rsa key byte len
+						asn1obj.Integer(big.NewInt(int64(privKey.PublicKey.N.BitLen() / 8))),
+					}),
+				}),
+			})
+
+	case *ecdsa.PrivateKey:
+		// private key object (slightly different than the key+cert format)
+		privKeyObj =
+			asn1obj.ExplicitCompound(0, [][]byte{
+				// commonObjectAttributes - Label
+				asn1obj.Sequence([][]byte{
+					asn1obj.UTF8String(apcKeyLabel),
+				}),
+				// CommonKeyAttributes
+				asn1obj.Sequence([][]byte{
+					// CommonKeyAttributes - iD - uses keyId that is SHA1( SubjectPublicKeyInfo SEQUENCE )
+					asn1obj.OctetString(p15.keyId()),
+					// CommonKeyAttributes - usage (trailing 0s will drop)
+					asn1obj.BitString([]byte{byte(0b00100010)}),
+					// CommonKeyAttributes - accessFlags (trailing 0s will drop)
+					asn1obj.BitString([]byte{byte(0b10110000)}),
+				}),
+
+				// Key IDs
+				asn1obj.ExplicitCompound(0, [][]byte{
+					asn1obj.Sequence([][]byte{
+						asn1obj.ExplicitCompound(0, [][]byte{
+							p15.keyIdInt2(),
+						}),
+					}),
+				}),
+
+				// ObjectValue - indirect-protected
+				asn1obj.ExplicitCompound(1, [][]byte{
+					asn1obj.Sequence([][]byte{
+						// AuthEnvelopedData Type ([4])
+						asn1obj.ExplicitCompound(4, [][]byte{
+							p15.envelopedPrivateKey,
+						}),
+					}),
+				}),
+			})
+
+		// convert ec pub key to a form that provides a public key bytes function
+		ecdhKey, err := privKey.PublicKey.ECDH()
+		if err != nil {
+			return nil, fmt.Errorf("failed to parse ec public key (%s)", err)
+		}
+
+		// select correct OID for curve
+		var curveOID asn1.ObjectIdentifier
+		switch privKey.Curve.Params().Name {
+		case "P-256":
+			curveOID = asn1obj.OIDprime256v1
+		case "P-384":
+			curveOID = asn1obj.OIDsecp384r1
+		case "P-521":
+			curveOID = asn1obj.OIDsecp521r1
+		default:
+			// bad curve name
+			return nil, errKeyWrongType
+		}
+
+		// pub key stub
+		pubKeyObj =
+			asn1obj.ExplicitCompound(0, [][]byte{
+				// commonObjectAttributes - Label
+				asn1obj.Sequence([][]byte{
+					asn1obj.UTF8String(apcKeyLabel),
+				}),
+				// CommonKeyAttributes
+				asn1obj.Sequence([][]byte{
+					asn1obj.OctetString(p15.keyId()),
+					asn1obj.BitString([]byte{byte(0b00000010)}),
+					asn1obj.BitString([]byte{byte(0b01000000)}),
+				}),
+
+				asn1obj.ExplicitCompound(1, [][]byte{
+					asn1obj.Sequence([][]byte{
 						asn1obj.ExplicitCompound(0, [][]byte{
 							asn1obj.Sequence([][]byte{
-								// commonObjectAttributes - Label
 								asn1obj.Sequence([][]byte{
-									asn1obj.UTF8String(apcKeyLabel),
-								}),
-								// CommonKeyAttributes
-								asn1obj.Sequence([][]byte{
-									asn1obj.OctetString(p15.keyId()),
-									asn1obj.BitString([]byte{byte(0b10000010)}),
-									asn1obj.BitString([]byte{byte(0b01000000)}),
+									asn1obj.ObjectIdentifier(asn1obj.OIDecPublicKey),
+									asn1obj.ObjectIdentifier(curveOID),
 								}),
+								asn1obj.BitString(ecdhKey.Bytes()),
+							}),
+						}),
+					}),
+				}),
+			})

-								asn1obj.ExplicitCompound(1, [][]byte{
-									asn1obj.Sequence([][]byte{
-										asn1obj.ExplicitCompound(0, [][]byte{
-											asn1obj.ExplicitCompound(1, [][]byte{
-												asn1obj.Sequence([][]byte{
-													asn1obj.ObjectIdentifier(asn1obj.OIDrsaEncryptionPKCS1),
-													asn1.NullBytes,
-												}),
-												// RSAPublicKey SubjectPublicKeyInfo
-												asn1obj.BitString(
-													asn1obj.Sequence([][]byte{
-														asn1obj.Integer(p15.key.PublicKey.N),
-														asn1obj.Integer(big.NewInt(int64(p15.key.PublicKey.E))),
-													}),
-												),
-											}),
-										}),
-										// not 100% certain but appears to be rsa key byte len
-										asn1obj.Integer(big.NewInt(int64(p15.key.PublicKey.N.BitLen() / 8))),
-									}),
-								}),
+	default:
+		// bad key type
+		return nil, errKeyWrongType
+	}
+
+	// assemble complete object
+	key =
+		asn1obj.Sequence([][]byte{
+			// contentType: OID: 1.2.840.113549.1.15.3.1 pkcs15content (PKCS #15 content type)
+			asn1obj.ObjectIdentifier(asn1obj.OIDPkscs15Content),
+			// content
+			asn1obj.ExplicitCompound(0, [][]byte{
+				asn1obj.Sequence([][]byte{
+					asn1obj.Integer(big.NewInt(0)),
+					asn1obj.Sequence([][]byte{
+						// [0] Private Keys
+						asn1obj.ExplicitCompound(0, [][]byte{
+							asn1obj.ExplicitCompound(0, [][]byte{
+								privKeyObj,
+							}),
+						}),
+						// [1] Public Keys
+						asn1obj.ExplicitCompound(1, [][]byte{
+							asn1obj.ExplicitCompound(0, [][]byte{
+								pubKeyObj,
 							}),
 						}),
 					}),
 				}),
 			}),
-		}),
-	})
+		})

 	return key, nil
 }
-
-// ToP15File turns the key and cert into a properly formatted and encoded
-// p15 file
-func (p15 *pkcs15KeyCert) ToP15Files() (keyCertFile []byte, keyFile []byte, err error) {
-	// rsa encrypted key in encrypted envelope (will be shared by both output files)
-	envelope, err := p15.encryptedKeyEnvelope()
-	if err != nil {
-		return nil, nil, err
-	}
-
-	// key + cert file
-	keyCertFile, err = p15.toP15KeyCert(envelope)
-	if err != nil {
-		return nil, nil, err
-	}
-
-	// key only file
-	keyFile, err = p15.toP15Key(envelope)
-	if err != nil {
-		return nil, nil, err
-	}
-
-	return keyCertFile, keyFile, nil
-}
--- a/pkg/pkcs15/private_key.go
+++ b/pkg/pkcs15/private_key.go
@ -1,24 +1,41 @@
 package pkcs15

-import "apc-p15-tool/pkg/tools/asn1obj"
+import (
+	"apc-p15-tool/pkg/tools/asn1obj"
+	"crypto/ecdsa"
+	"crypto/rsa"
+)

 // privateKeyObject returns the ASN.1 representation of a private key
 func (p15 *pkcs15KeyCert) privateKeyObject() []byte {
-	// ensure all expected vals are available
-	p15.key.Precompute()
+	var privKeyObj []byte

-	pkey := asn1obj.Sequence([][]byte{
-		// P
-		asn1obj.IntegerExplicitValue(3, p15.key.Primes[0]),
-		// Q
-		asn1obj.IntegerExplicitValue(4, p15.key.Primes[1]),
-		// Dp
-		asn1obj.IntegerExplicitValue(5, p15.key.Precomputed.Dp),
-		// Dq
-		asn1obj.IntegerExplicitValue(6, p15.key.Precomputed.Dq),
-		// Qinv
-		asn1obj.IntegerExplicitValue(7, p15.key.Precomputed.Qinv),
-	})
+	switch privKey := p15.key.(type) {
+	case *rsa.PrivateKey:
+		privKey.Precompute()

-	return pkey
+		// ensure all expected vals are available
+		privKeyObj = asn1obj.Sequence([][]byte{
+			// P
+			asn1obj.IntegerExplicitValue(3, privKey.Primes[0]),
+			// Q
+			asn1obj.IntegerExplicitValue(4, privKey.Primes[1]),
+			// Dp
+			asn1obj.IntegerExplicitValue(5, privKey.Precomputed.Dp),
+			// Dq
+			asn1obj.IntegerExplicitValue(6, privKey.Precomputed.Dq),
+			// Qinv
+			asn1obj.IntegerExplicitValue(7, privKey.Precomputed.Qinv),
+		})
+
+	case *ecdsa.PrivateKey:
+		// Only private piece is the integer D
+		privKeyObj = asn1obj.Integer(privKey.D)
+
+	default:
+		// panic if unsupported key
+		panic("private key type is unexpected and unsupported")
+	}
+
+	return privKeyObj
 }
--- a/pkg/tools/asn1obj/oid.go
+++ b/pkg/tools/asn1obj/oid.go
@ -11,6 +11,10 @@ var (
 	OIDdesEDE3CBC         = asn1.ObjectIdentifier{1, 2, 840, 113549, 3, 7}            // des-EDE3-CBC (RSADSI encryptionAlgorithm)
 	OIDpkcs7Data          = asn1.ObjectIdentifier{1, 2, 840, 113549, 1, 7, 1}         // data (PKCS #7)
 	OIDauthEnc128         = asn1.ObjectIdentifier{1, 2, 840, 113549, 1, 9, 16, 3, 15} // authEnc128 (S/MIME Algorithms)
+	OIDecPublicKey        = asn1.ObjectIdentifier{1, 2, 840, 10045, 2, 1}             // ecPublicKey (ANSI X9.62 public key type)
+	OIDprime256v1         = asn1.ObjectIdentifier{1, 2, 840, 10045, 3, 1, 7}          //  prime256v1 (ANSI X9.62 named elliptic curve)
+	OIDsecp384r1          = asn1.ObjectIdentifier{1, 3, 132, 0, 34}                   //  secp384r1 (SECG (Certicom) named elliptic curve)
+	OIDsecp521r1          = asn1.ObjectIdentifier{1, 3, 132, 0, 35}                   //  secp521r1 (SECG (Certicom) named elliptic curve)
 )

 // ObjectIdentifier returns an ASN.1 OBJECT IDENTIFIER with the oidValue bytes
Author	SHA1	Message	Date
Greg T. Wallace	86feabd939	v1.2.2	2025-04-22 18:27:55 -04:00
Greg T. Wallace	124c06d8be	build: compile linux/arm64 in native runner	2025-04-22 18:27:55 -04:00
Greg T. Wallace	72f3f42baa	build: add darwin arm64 & amd64	2025-04-22 18:27:54 -04:00
Greg T. Wallace	3bb6b2a3c1	dep: update all	2025-04-22 18:27:54 -04:00
Greg T. Wallace	1392529a3f	dep: go 1.24.2	2025-04-22 18:27:54 -04:00
Greg T. Wallace	e87a3100d2	v1.2.1	2025-03-17 22:06:52 -04:00
Greg T. Wallace	c67001f0e4	dep: update all	2025-03-17 22:06:46 -04:00
Greg T. Wallace	ad8c4e88a9	dep: go 1.24.1	2025-03-17 22:05:29 -04:00
FingerlessGloves	096b50187a	Fix GetTime for GMT users (#13 ) UPS failes to use the required `+` when in the GMT timezone. Account for that. --------- Co-authored-by: Greg T. Wallace <greg@gregtwallace.com>	2025-03-17 22:01:37 -04:00
Greg T. Wallace	c5bb8edbec	update screenshot	2025-01-28 21:04:06 -05:00
Greg T. Wallace	2e082a30cf	v1.2.0	2025-01-27 19:54:04 -05:00
Greg T. Wallace	06b76700c4	dep: update all	2025-01-27 19:47:13 -05:00
Greg T. Wallace	7f377fc5da	dep: build with ubuntu-24.04	2025-01-27 19:23:18 -05:00
Greg T. Wallace	eedbdfcc2a	dep: go 1.23.5	2025-01-27 19:22:45 -05:00
Greg T. Wallace	47b964d6ee	install: add time check and warning Clock skew can cause problems with SSL and certificates. Check the UPS clock and log a warning for the user if the UPS clock is more than 1 hour different than the clock of the system this tool is running on see: https://github.com/gregtwallace/apc-p15-tool/issues/11#issuecomment-2609010943	2025-01-27 19:11:06 -05:00
Greg T. Wallace	1cfd35c4e2	readme: escape asterisks	2024-09-17 18:50:06 -04:00
Greg T. Wallace	94a76b93de	v1.1.0	2024-09-17 18:44:35 -04:00
Greg T. Wallace	1cd9916a17	install: add web ui cert verification * connect to the ups web ui after install and verify the proper certificate is being served * rename `apchost` flag to `hostname` * separate ports to additional flags (`sshport` `sslport`) with sane defaults	2024-09-17 18:44:34 -04:00
Greg T. Wallace	c22447b0c2	readme: update info re: modern key support	2024-09-17 18:44:33 -04:00
Greg T. Wallace	cbb831e009	add ecdsa key support and enable 4,092 RSA * apcssh: add descriptive error when required file(s) not passed * create: dont create key+cert file when key isn't supported by NMC2 * config: fix usage messages re: key types * p15 files: dont generate key+cert when it isn't needed (aka NMC2 doesn't support key) * pkcs15: pre-calculate envelope when making the p15 struct * pkcs15: omit key ID 8 & 9 from EC keys * pkcs15: update key decode logic * pkcs15: add key type value for easy determination of compatibility * pkcs15: add ec key support * pkcs15: separate functions for key and key+cert p15 files * update README see: https://github.com/gregtwallace/apc-p15-tool/issues/6	2024-09-17 18:44:33 -04:00
Greg T. Wallace	51e5847409	go: update to 1.23.1	2024-09-17 18:44:33 -04:00
Greg T. Wallace	e2b5abc624	readme: add beta notice	2024-07-09 19:16:59 -04:00
Greg T. Wallace	b8e9a23386	v1.0.0	2024-07-01 22:35:26 -04:00
Greg T. Wallace	9578fa26ce	fix go build ver 1.22.4	2024-07-01 22:35:21 -04:00
Greg T. Wallace	371a2ecc30	README: update testing setup Update firmware on my UPS,	2024-06-26 21:34:47 -04:00
Greg T. Wallace	6363282a75	v0.5.3	2024-06-24 18:24:35 -04:00
Greg T. Wallace	7c1ad8ef43	pkcs15: add some prep for maybe ec key support later	2024-06-24 18:23:05 -04:00
Greg T. Wallace	06f9892501	add rsa 3,072 bit support	2024-06-24 18:23:02 -04:00
Greg T. Wallace	b7026ff906	v0.5.2	2024-06-19 19:57:56 -04:00
Greg T. Wallace	703c26bd27	apcssh: add shell cmd timeout It was possible for scanner.Scan() to block indefinitely if the UPS never returned the expected prompt regex pattern. This could occur with a UPS using a prompt format I'm not aware of, or if the UPS responds in a non-standard way. This change ensures that Scan() is aborted after a fixed amount of blocking time and the shell cmd function accordingly returns an error. Some error messages, comments, and var names are also updated for clarity.	2024-06-19 19:56:17 -04:00
Greg T. Wallace	841a459dca	apcssh: minor log and logic clarity	2024-06-19 19:56:16 -04:00
